RM3,400.00 – RM15,300.00
“Side Track” Mobile Compact Filing System also known as Glide A Side Filing System. It is formed by a row of static bay at the back, and a few movable bays in front. Each bay with standard 4 adjustable shelves. Front movable bays with options either open shelf (no door) or swing door.
Glide A Side Mobile Compactor or Side Track Compactor, is an innovative design which was designed for those space with a wide but narrow space. Its structure is the same as per manual hand push mobile compactor. The only difference is side track compactor moved horizontally, while manual and mechanical type compactor moved vertically.
Normally side track compactor comes with a row of static bay, and a row of movable bay. Number of bays depend on the space of the site.
Description
Brand: CAPITAL Material: 0.7mm and 1.2mm thickness Cold Roll Sheet (mild steel) Specifications:- Size per bay 2160H x 915W x 406.5Dmm and aisle space 915mm
- 4 adjustable dual-purpose shelves per bay
- with metal (steel) platform
- Center locking system with flush lock
- Combination of static bay (fixed bay) and sliding bay (movable bay)
- 2+1 bays : 2 static bays +1 sliding bay @ 2160H x 1935L x 840Wmm
- 3+2 bays : 3 static bays +2 sliding bay @ 2160H x 2850L x 840Wmm
- 4+3 bays : 4 static bays +3 sliding bay @ 2160H x 3765L x 840Wmm
- 5+4 bays : 5 static bays +4 sliding bay @ 2160H x 4680L x 840Wmm
- 2+1+1 bays : 2 static bays +3 sliding bay @ 2160H x 1935L x 1275Wmm
- 3+2+2 bays : 3 static bays +4 sliding bay @ 2160H x 2850L x 1275Wmm

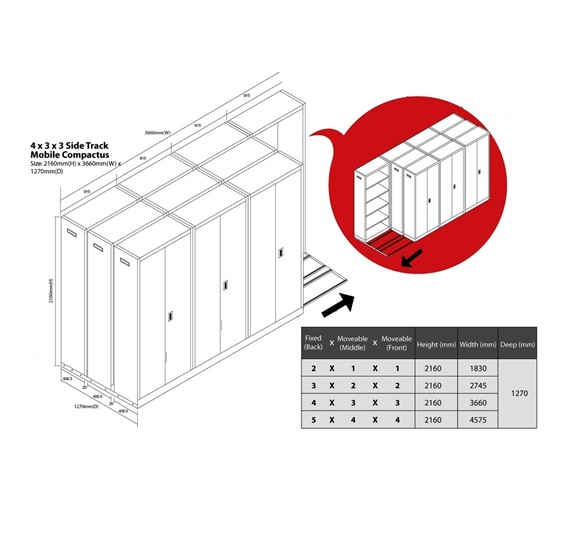

- 4+3+3 bays : 4 static bays +6 sliding bay @ 2160H x 3765L x 1275Wmm
- 5+4+4 bays : 5 static bays +8 sliding bay @ 2160H x 4680L x 1275Wmm
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | "2+1", "3+2", "4+3", "5+4", "2+1+1", "3+2+2", "4+3+3", "5+4+4" |
